Worked example: killer whales

A full session on one species: retrieve, map, group, pivot, and test a relationship, using the client together with DataFrames and CairoMakie. Analysis and plotting are not part of OBISClient.jl. They happen here on a table the client handed over, which is why it implements Tables.jl.

The script is examples/orcas.jl. Run it with julia --project=examples examples/orcas.jl. Every number and figure below came from that run; the counts move as OBIS ingests data.

using OBISClient, DataFrames, Statistics

1. The query, and what it leaves out

Size the query before retrieving it, and ask what the default view is hiding:

st = OBISClient.statistics("Orcinus orca")
OBISClient.statistics("Orcinus orca"; absence = :only)["records"]
OBISClient.statistics("Orcinus orca"; dropped = :only)["records"]

presence records returned by default : 34364
datasets                             : 260
year range                           : 1758–2026
absence records, excluded by default : 4386
dropped records, excluded by default : 65

4,386 absence records (surveys that went looking for killer whales and did not find them) are excluded from every default query and from the Mapper downloads. For a species distribution question they are the other half of the evidence.

Retrieving the presences is one call. At 34,364 records it sits under the API limit, so no route decision is needed:

records = OBISClient.occurrence("Orcinus orca"; progress = true)
df = DataFrame(records)

2. groupby: where do the records come from?

The columns are already typed, so ordinary DataFrames idiom applies with no cleaning step:

by_basis = combine(groupby(dropmissing(df, :basisOfRecord), :basisOfRecord), nrow => :records)
sort!(by_basis, :records; rev = true)

6×2 DataFrame
 Row │ basisOfRecord           records
     │ String                  Int64
─────┼─────────────────────────────────
   1 │ HumanObservation          31325
   2 │ MachineObservation         2858
   3 │ Occurrence                  117
   4 │ PreservedSpecimen            58
   5 │ MaterialSample                5
   6 │ NomenclaturalChecklist        1

Overwhelmingly people watching from boats and shorelines, which is worth knowing before treating the records as a survey.

by_dataset = combine(groupby(df, :dataset_id), nrow => :records)
sort!(by_dataset, :records; rev = true)

34364 records come from 260 datasets; the largest contributes 8374 (24.4%).

Group on dataset_id, not on the citation text: citation strings come from the provider, and some are missing or shared, which would merge distinct datasets. Grouping on the identifier reproduces the 260 that statistics reports; grouping on the citation gives 251.

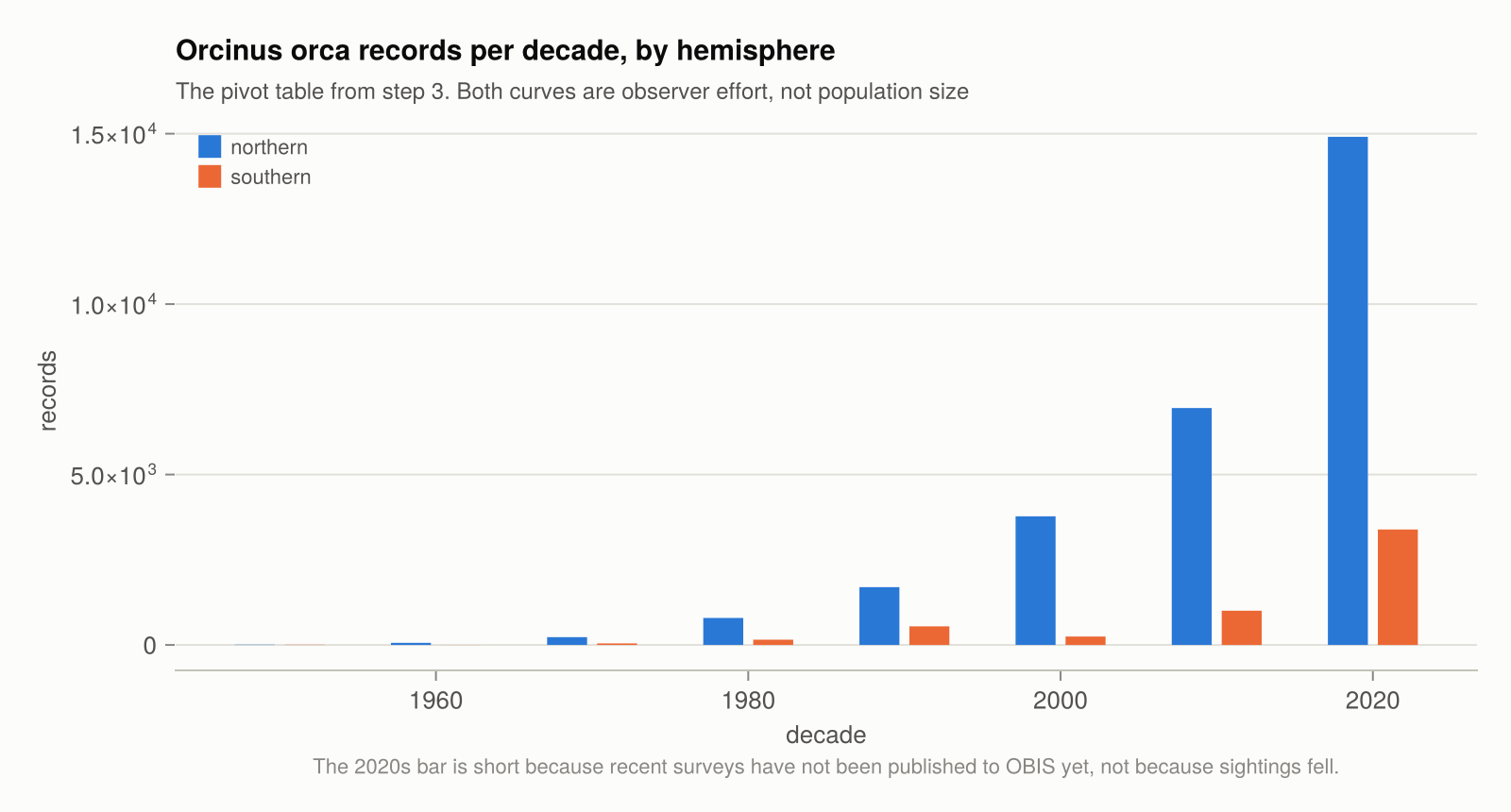

3. unstack: a pivot table

Records by decade and hemisphere:

work = dropmissing(df, [:date_year, :decimalLatitude])
work.decade     = (work.date_year .÷ 10) .* 10
work.hemisphere = ifelse.(work.decimalLatitude .>= 0, "northern", "southern")

pivot = unstack(
    combine(groupby(work, [:decade, :hemisphere]), nrow => :records),
    :decade, :hemisphere, :records; fill = 0,
)

8×3 DataFrame
 Row │ decade  southern  northern
     │ Int64   Int64     Int64
─────┼────────────────────────────
   1 │   1950         7         9
   2 │   1960         2        62
   3 │   1970        46       229
   4 │   1980       155       792
   5 │   1990       546      1696
   6 │   2000       247      3774
   7 │   2010      1005      6951
   8 │   2020      3388     14908

Both columns climb steeply, but neither is a population estimate. They track the spread of digital recording, dedicated cetacean surveys and, more recently, citizen science. The southern dip in the 2000s is a survey programme ending.

4. Mapping

Coordinates are Float64 columns, so they go straight into a plotting call. Land comes from Natural Earth; nothing here is specific to OBISClient.jl:

using CairoMakie, GeoMakie, NaturalEarth

lon  = collect(records.decimalLongitude)
lat  = collect(records.decimalLatitude)
keep = .!ismissing.(lon) .& .!ismissing.(lat)

fig = Figure(; size = (900, 560))
ga  = GeoAxis(fig[1, 1]; dest = "+proj=robin",
              xticklabelsvisible = false, yticklabelsvisible = false)

poly!(ga, NaturalEarth.naturalearth("land", 110).geometry;
      color = "#eeece6", strokecolor = "#c3c2b7", strokewidth = 0.5)
scatter!(ga, lon[keep], lat[keep];
         color = ("#2a78d6", 0.35), markersize = 3, strokewidth = 0)

save("orca-global.png", fig; px_per_unit = 2)

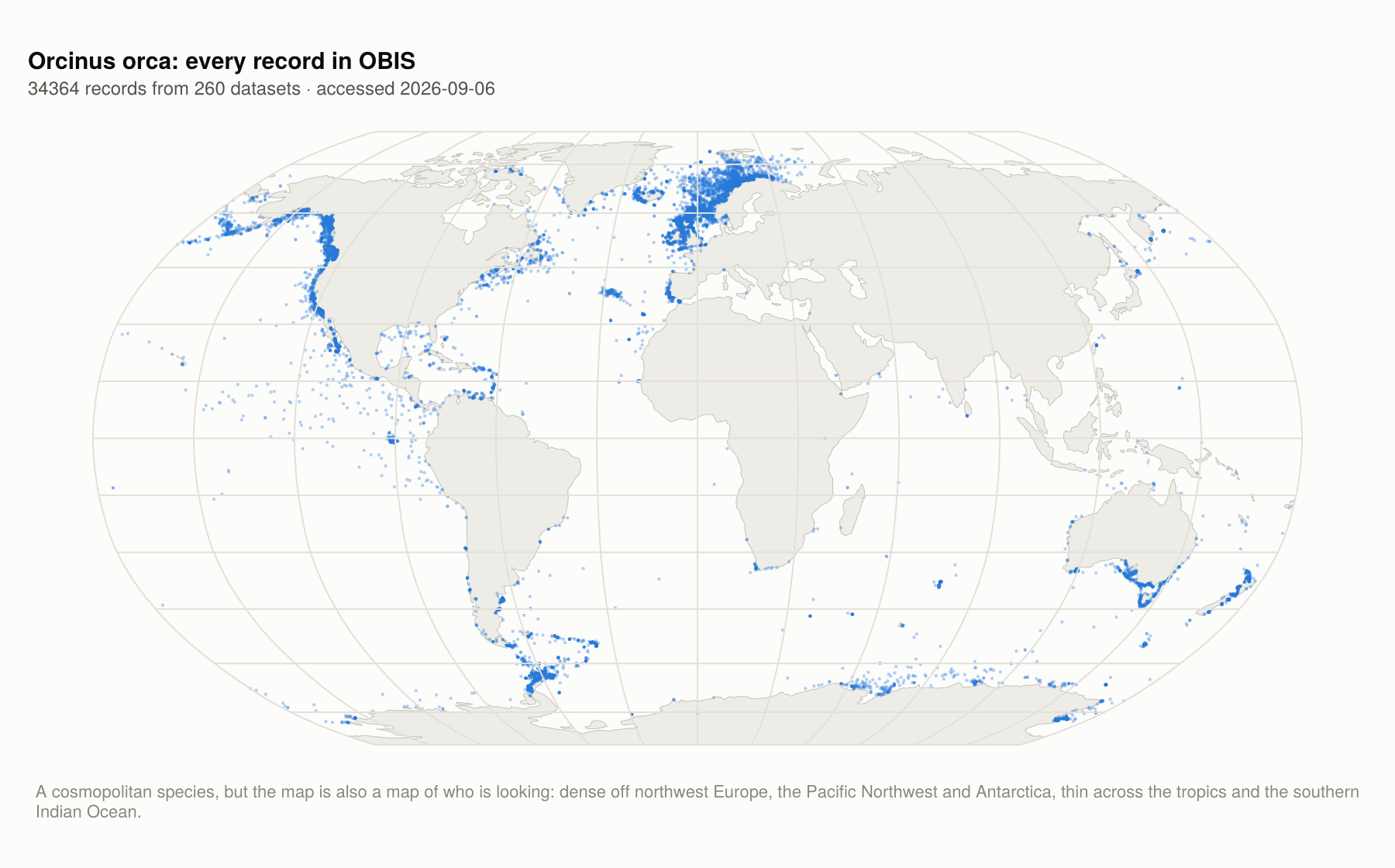

Killer whales are genuinely cosmopolitan, so this map comes unusually close to a real distribution. Even so, the density still tracks where the observers are: heavy off northwest Europe, the Pacific Northwest and the Antarctic Peninsula, thin across the tropics and the southern Indian Ocean.

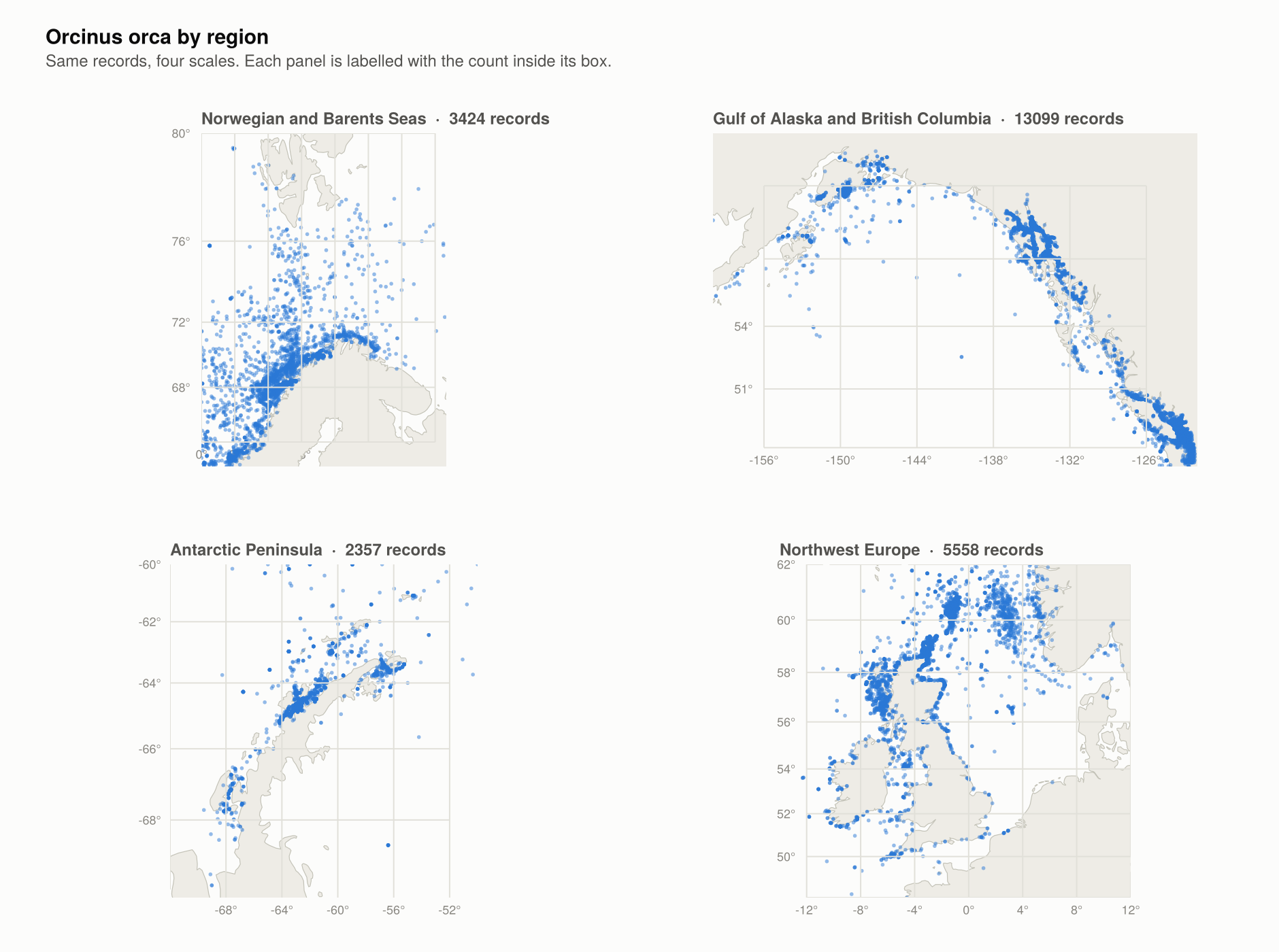

Zooming in shows structure a world map flattens away. Each panel is the same records under a different bounding box, filtered with ordinary broadcasting:

REGIONS = [
    ("Norwegian and Barents Seas",         (0.0, 44.0, 62.0, 80.0)),
    ("Gulf of Alaska and British Columbia", (-160.0, -122.0, 47.0, 62.0)),
    ("Antarctic Peninsula",                (-72.0, -50.0, -70.0, -60.0)),
    ("Northwest Europe",                   (-14.0, 12.0, 48.0, 62.0)),
]

fig  = Figure(; size = (940, 700))
land = NaturalEarth.naturalearth("land", 50).geometry

for (k, (title, (w, e, s, n))) in enumerate(REGIONS)
    row, col = divrem(k - 1, 2) .+ (1, 1)
    inbox = keep .& (lon .>= w) .& (lon .<= e) .& (lat .>= s) .& (lat .<= n)

    ga = GeoAxis(fig[row, col]; dest = "+proj=merc", limits = (w, e, s, n),
                 title = "$(title)  ·  $(count(inbox)) records")
    poly!(ga, land; color = "#eeece6", strokecolor = "#c3c2b7", strokewidth = 0.6)
    scatter!(ga, lon[inbox], lat[inbox];
             color = ("#2a78d6", 0.5), markersize = 4, strokewidth = 0)
end

The Norwegian records trace the herring-following population along the coast and shelf, and the British Columbia records follow the Inside Passage. A dense block north of Scotland dominates the northwest Europe panel. Each panel is a survey footprint as much as a habitat.

5. A statistic worth computing

Fitting a trend line to record counts over time would just measure observers. A more useful question, and one that quantifies the problem: does apparent species richness track sampling effort across regions?

statistics returns both counts for an area in a single request, so this costs one request per region:

areas = OBISClient.area()
lme = [i for i in 1:OBISClient.nrow(areas)
       if !ismissing(areas.type[i]) && areas.type[i] == "lme"]

name, records, species = String[], Int[], Int[]
for i in lme[1:26]
    s = try
        OBISClient.statistics(; areaid = areas.id[i])
    catch err
        err isa OBISClient.OBISError || rethrow()
        continue                       # a region with no data is not a failure
    end
    (s["records"] > 0 && s["species"] > 0) || continue
    push!(name, String(areas.name[i]))
    push!(records, Int(s["records"]))
    push!(species, Int(s["species"]))
end

regions = DataFrame(; region = name, records, species)
sort!(regions, :records; rev = true)

8×3 DataFrame
 Row │ region                         records   species
     │ String                         Int64     Int64
─────┼──────────────────────────────────────────────────
   1 │ California Current             16968104    11505
   2 │ East Central Australian Shelf  16014671    17001
   3 │ Celtic-Biscay Shelf            13492953    10882
   4 │ Gulf of Alaska                  7242071     6887
   5 │ Baltic Sea                      6806532     4259
   6 │ Caribbean Sea                   3640502    15609
   7 │ Agulhas Current                 1905190    13977
   8 │ Barents Sea                     1443787     5235

Spearman's rank correlation needs no distributional assumption and is three lines:

function spearman(x, y)
    rank(v) = invperm(sortperm(v))
    return cor(float.(rank(x)), float.(rank(y)))
end

rho = spearman(regions.records, regions.species)

lx, ly = log10.(regions.records), log10.(regions.species)
b = cov(lx, ly) / var(lx)          # slope of log(species) on log(records)

across 26 large marine ecosystems
  Spearman's rho (records vs species)      : 0.771
  slope of log10(species) on log10(records) : 0.449

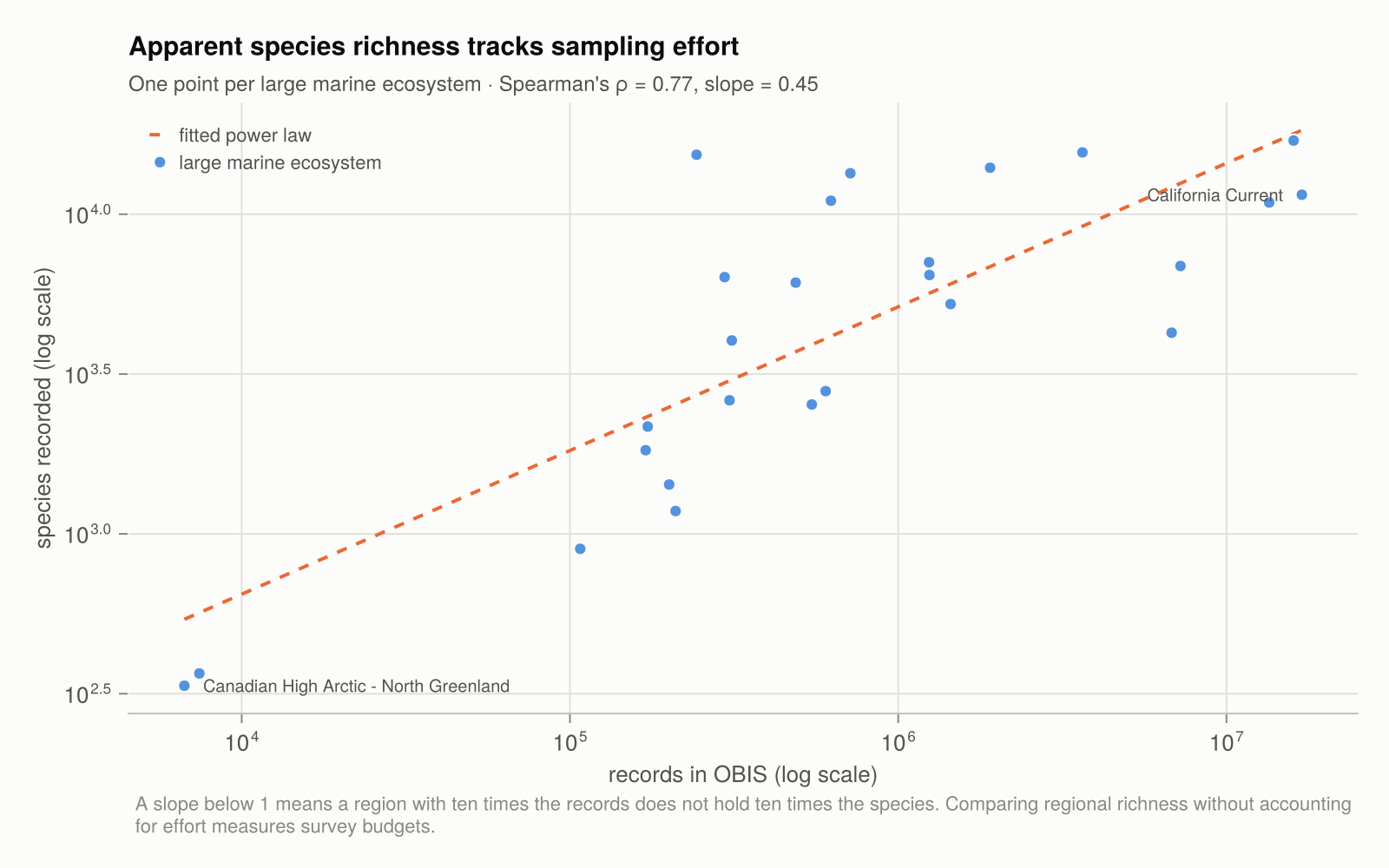

ρ = 0.77 across 26 large marine ecosystems: regions with more records have more species on record. The slope of 0.45 says how the two are related: richness rises roughly as the square root of effort, so a region with a hundred times the records shows about ten times the species.

Read the slope carefully in both directions. It does not mean the Caribbean is poorer than the California Current. It means that any comparison of regional richness that ignores effort is partly measuring survey budgets. Nor does it correct the bias: turning these counts into comparable richness estimates is a modelling problem, and the scope of a different package.

Two caveats on the analysis itself, since it is an example and not a result:

• The 26 regions are the first 26 large marine ecosystems in the area list, not a designed sample. They differ in area, latitude and habitat, none of which is controlled for.
• Records and species are not independent quantities: a species enters the count because a record exists. The correlation is real but partly definitional, which is why the slope is the more informative number here.

The complete scripts

The code above is trimmed to what each step is about, leaving out the shared theme, the light and dark variants, and the captions. Both scripts appear in full, exactly as they are in the repository, under Example scripts.

What to take from this

The client's job ended at step 1. Everything after it is ordinary Julia on an ordinary table. groupby, unstack, cor and log10 all work without a cleaning step, and they keep working when the query changes.

The interpretation, though, does not come from the tools. See Interpreting OBIS data.
